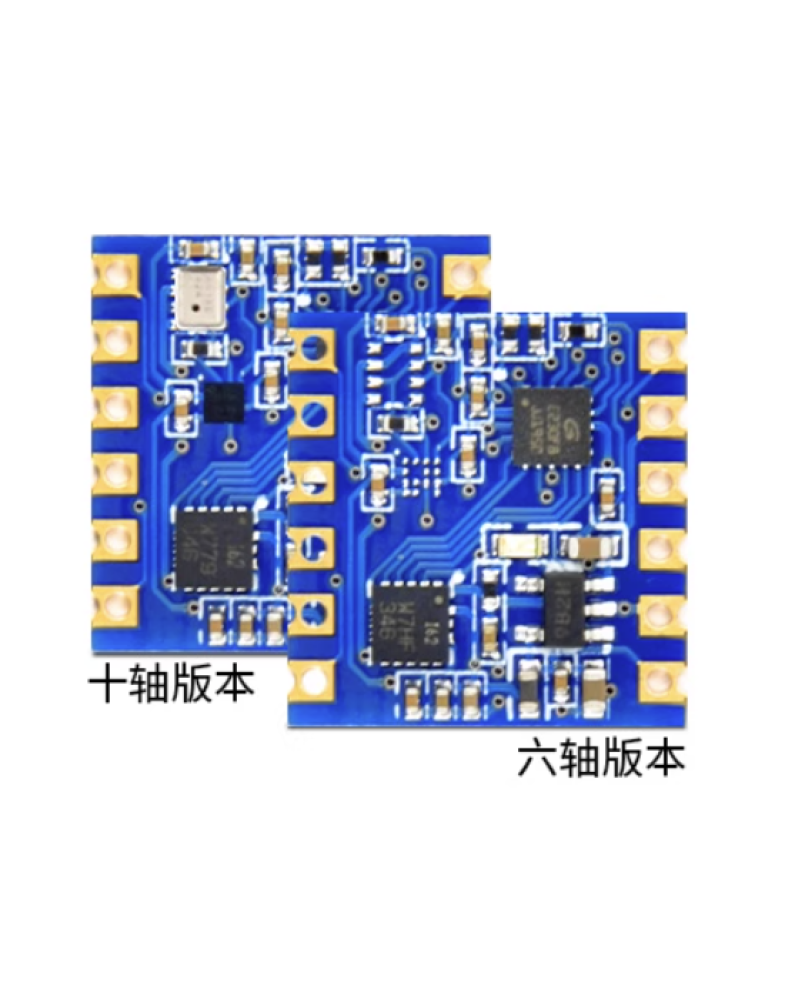

Product Features

• Independently developed attitude-solving algorithm:

  • X/Y axis static accuracy: 0.05°

  • Z axis (yaw) maintains long-term stability without drift under non-magnetic conditions.

  • High precision.

• Serial port outputs real-time data including attitude angle, acceleration, angular velocity, magnetic field, and air pressure. Easy to use.

• Comes with a test host program for configuring module parameters. Simple and convenient.

• Provides STM32 development board example code for easy secondary development.

• Uses a 32-bit MCU with high-precision sensors for strong performance.

• Compact size with castellated hole interface, easy integration onto custom PCBs.




  Product Specifications

  • Operating Voltage: 3.3V ~ 5V (5V recommended)

  • Operating Current: <25 mA

  • Serial Baud Rate: TTL level (3.3V), adjustable 2400 ~ 921600

  • Angle Accuracy:

    • X, Y axes: 0.05° static, 0.1° dynamic

    • Z axis: 0.5°

  • Angle Range:

    • X, Z: ±180°

    • Y: ±90°

  • Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s (configurable)

  • Acceleration Range: ±2g, ±4g, ±8g, ±16g (configurable)

  • Measurement Dimensions:

    • Acceleration (3-axis)

    • Angular velocity (3-axis)

    • Magnetic field (3-axis)

    • Attitude angle (3-axis)

    • Air pressure (1-axis)

  • Output Data: Acceleration, angular velocity, attitude angle, magnetic field, port status, air pressure, altitude

  • Data Output Rate: 1 ~ 250 Hz

  • 4 Expansion Ports:

    • Analog input (0 ~ 3.3V)

    • Digital input

    • Digital output

    • PWM output (D1, D3)

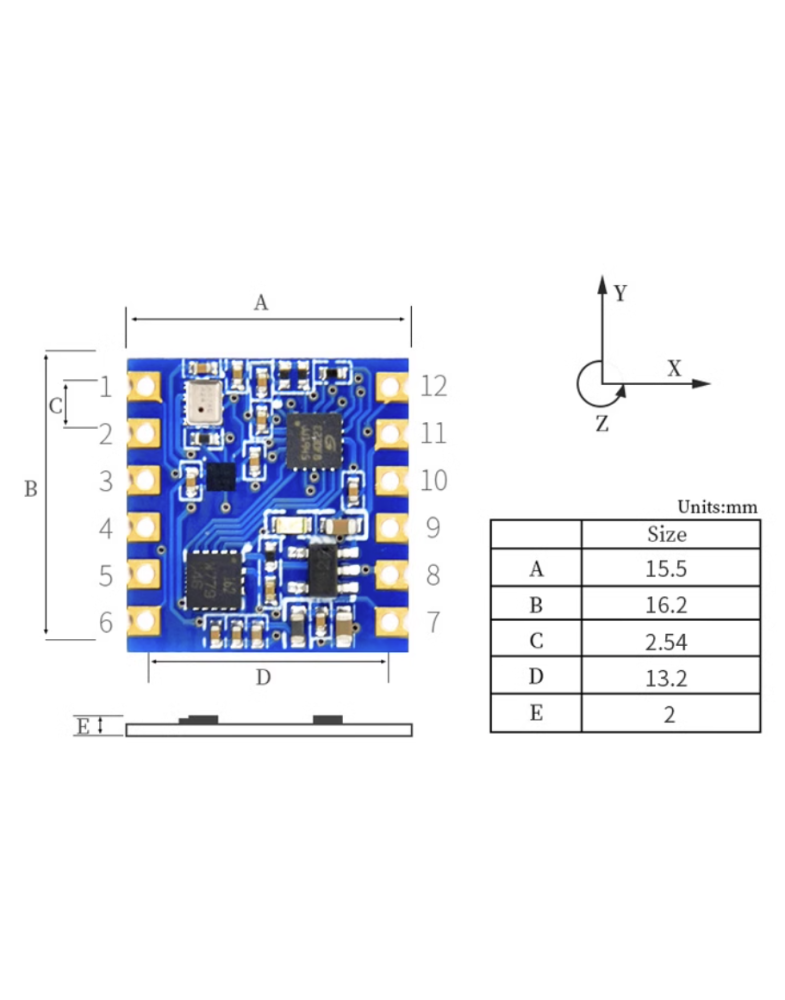

  • Dimensions: 15.57 mm × 16.20 mm × 2 mm

  • Pin Pitch: 2.54 mm, width ~15.57 mm
